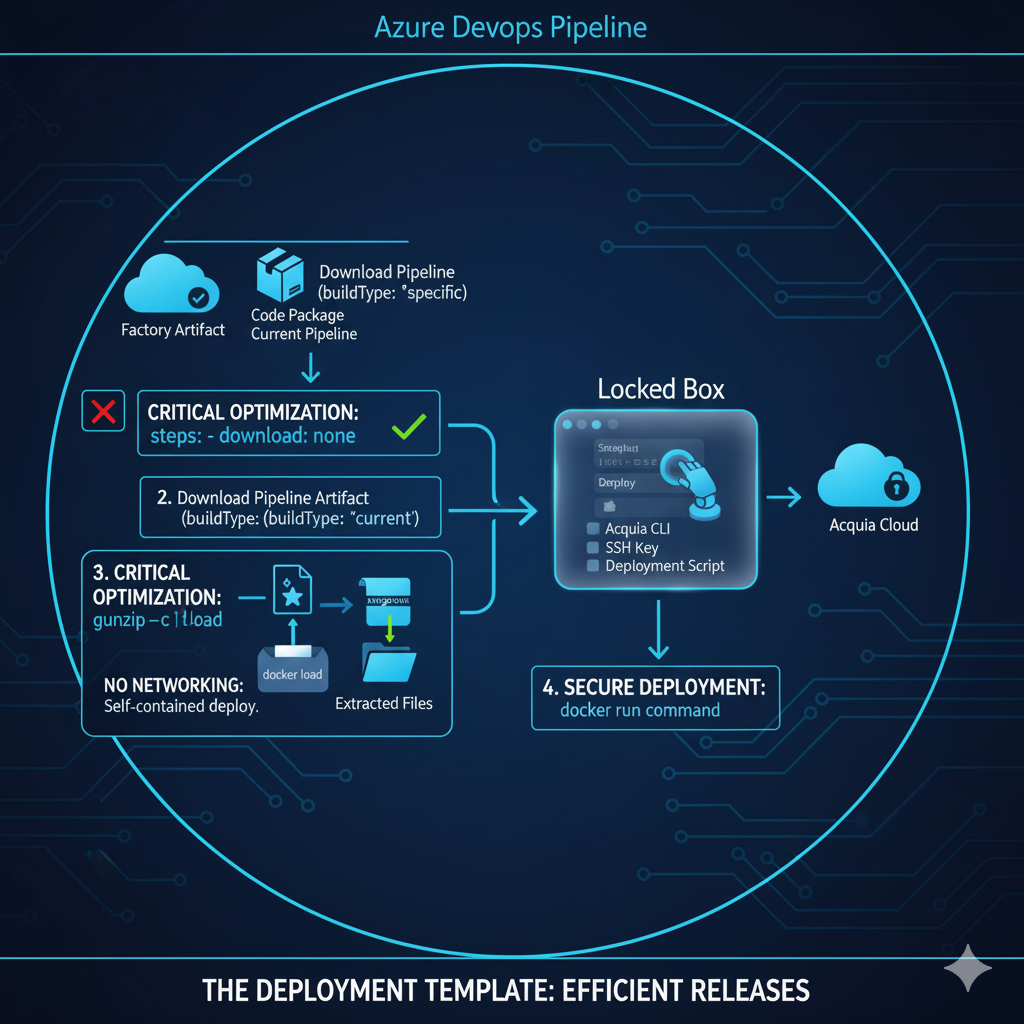

The Deploy Stage (deploy.yml)

This template is a model of efficiency. It downloads both artifacts and uses one to deploy the other.

Key Features:

• steps: - download: none: This is a critical bug fix. deployment jobs automatically download all artifacts. This step disables that behavior, preventing a "double download" and saving time.
• Two Download Tasks: It manually downloads the "Locked Box" from the Factory (buildType: 'specific') and the "Package" from the current pipeline (buildType: 'current').
• gunzip -c: It uses the same decompression trick as the Build stage.
• No Networking: The final docker run deploy command doesn't need --network=ci-net because it's self-contained and doesn't need to talk to MySQL.

# deploy.yml
parameters:
  displayName: 'Deploy [PROJECT-NAME]'
  jobName: 'Deploy_Drupal'
  agentPool: 'aws-ubuntu-latest'
  phpImageName: 'php-build-[PROJECT-NAME]'
  projectId: '[PROJECT-NAME]'
  imageBuilderPipelineDefinitionName: '' # Default placeholder

jobs:
  - deployment: ${{ parameters.jobName }}
    displayName: ${{ parameters.displayName }}
    pool: ${{ parameters.agentPool }}
    environment: ${{ parameters.environmentAzureDevOps }}
    workspace:
      clean: all
    strategy:
      runOnce:
        deploy:
          steps:
            # === CRITICAL BUG FIX ===
            # Disables the default auto-download
            - download: none

            # === Download "Locked Box" from the Factory pipeline ===
            - task: DownloadPipelineArtifact@2
              displayName: 'Download Docker Image Artifact'
              inputs:
                buildType: 'specific'
                project: '$(System.TeamProjectId)'
                definition: '${{ parameters.imageBuilderPipelineDefinitionName }}'
                buildVersionToDownload: 'latest'
                artifactName: '${{ parameters.phpImageName }}'
                targetPath: '$(Pipeline.Workspace)/docker-artifact'

            # === Download "Package" from THIS pipeline ===
            - task: DownloadPipelineArtifact@2
              displayName: 'Download Complete Code Artifact'
              inputs:
                buildType: 'current'
                artifact: '$(Build.Repository.Name)'
                targetPath: '$(Pipeline.Workspace)/artifact-code'

            - script: |
                # Use gunzip to decompress and pipe to docker load
                gunzip -c $(Pipeline.Workspace)/docker-artifact/${{ parameters.phpImageName }}.tar.gz | docker load
              displayName: 'Load Docker Image'

            - task: ExtractFiles@1
              displayName: 'Extract Complete Artifact'
              inputs:
                archiveFilePatterns: '$(Pipeline.Workspace)/artifact-code/$(Build.Repository.Name).zip'
                destinationFolder: '$(System.DefaultWorkingDirectory)'
                cleanDestinationFolder: true

            # Prepare SSH keys
            - task: DownloadSecureFile@1
              name: downloadSSHKey
              displayName: 'Download Acquia SSH Private Key'
              inputs:
                secureFile: '${{ parameters.privateSSHKeyName }}'
            - script: |
                mkdir -p $(Pipeline.Workspace)/.ssh
                cp $(downloadSSHKey.secureFilePath) $(Pipeline.Workspace)/.ssh/id_rsa
                chmod 600 $(Pipeline.Workspace)/.ssh/id_rsa
                ssh-keyscan -t rsa ${HOST} >> $(Pipeline.Workspace)/.ssh/known_hosts
              displayName: 'Prepare SSH key'

            # Deploy!
            - script: |
                docker run --rm \
                  -v $(System.DefaultWorkingDirectory):/app \
                  -v $(Pipeline.Workspace)/.ssh:/root/.ssh:ro \
                  -w /app \
                  -e ACQUIA_CLIENT_ID=$(ACQUIA_CLIENT_ID) \
                  -e ACQUIA_CLIENT_SECRET=$(ACQUIA_CLIENT_SECRET) \
                  -e APPLICATION_UUID=$(APPLICATION_UUID) \
                  -e BUILD_SOURCEBRANCHNAME=$(Build.SourceBranchName) \
                  ${{ parameters.phpImageName }} bash -c "ci/scripts/deploy/deploy_artifact.sh"
              displayName: 'Deploy to Acquia via Docker'
